Front Fork Bolt & Washer:
1 stainless steel bolt with large flat washer for the front fork:
(M10x30mm 1.5 thread & Thick Washer: 41mm for M10 Bolt) |
 |
Down-Tube Bolts:
2 stainless steel bolts with self-locking nuts for connecting the side frames to the down-tube:
(M10x65mm 1.5 thread) |
 |
Side Tube Bolts:
2 stainless steel bolts with self-locking nuts for securing the side tubes to the rear axle:
(M10x50mm 1.5 thread) |
 |
Rear Wheel Bolts:
2 hi-tensile steel bolts with lock washers for mounting both rear wheels to the rear axle:
(M12x130mm 1.75 thread) |
 |
Front Axle Bolt & Nut:
1 stainless steel front axle bolt and spacers with self-locking nut:
(M12x182mm 1.75 thread)
|
 |
Front Axle Spacers:
Spacers: 2 each of 12mm ID x 40mm tube fits over M12 Bolts on either side of the front wheel
|
 |

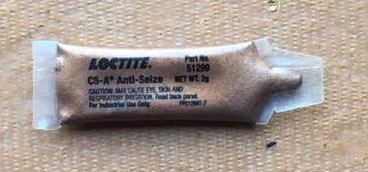

Copper Lubricant:
Use this Copper Lubricant on all Stainless Steel Bolt threads before securing!
Failure to do so will cause the bolts to gall.
|
 |
